• P265/70R17 all-terrain OWL tires
• 17" machined aluminum wheels w/painted accents
• Full size spare tire
• Under frame winch-type spare tire carrier w/safety catch & lock
• Body-color front bumper fascia
• Chrome front/rear step bumper
• Black front/rear stone cuffs
• Chrome grille surround w/chrome "two-bar style" insert
• Autolamp -inc: automatic on/off headlamps
• Cargo lamp integrated w/high mount stop light
• Fog lamps
• Black pwr side mirrors
• Fixed rear window
• Rear privacy tint glass
• Variable interval wipers
• Black door & tailgate handles
• (4) full-size doors
• Removable tailgate w/key lock & lift assist

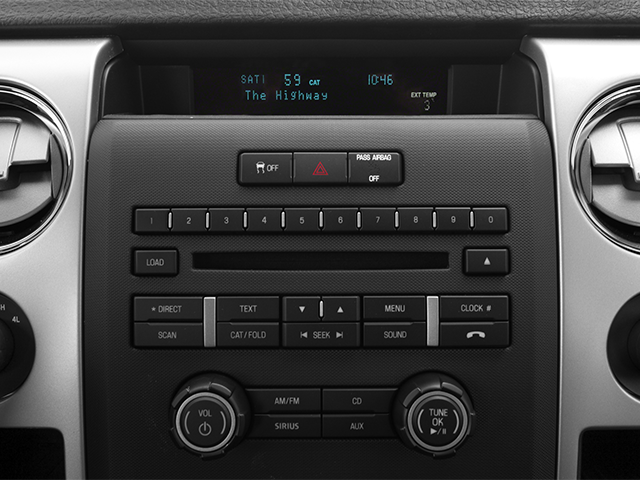

• AM/FM stereo w/CD player -inc: clock

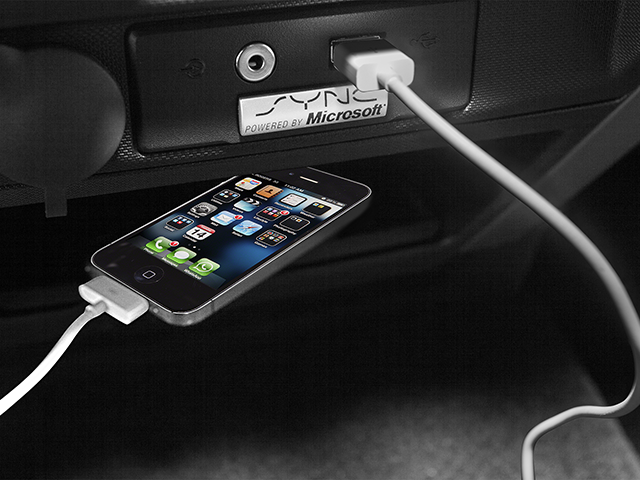

• SYNC voice activated communications & entertainment system -inc: Bluetooth capability, steering wheel audio controls, USB port, audio input jack, 911 assist, vehicle health report, Applink *Additional SYNC services available w/annual subscription fee*

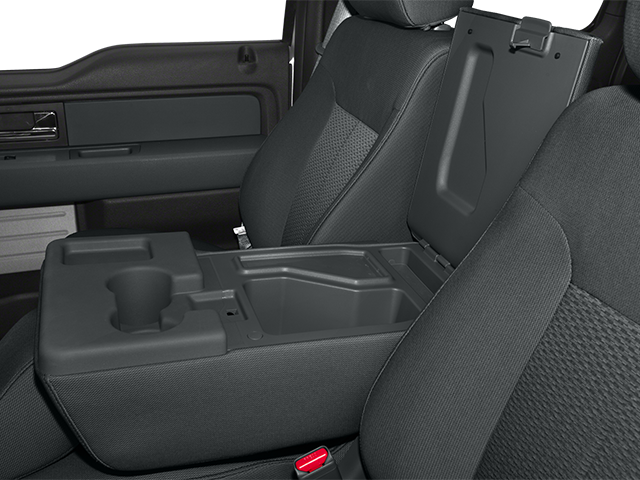

• Cloth 40/20/40 split bench front seat w/manual driver lumbar
• 60/40 flip-up rear split bench seat -inc: elongated seat cushions
• Color-coordinated carpet -inc: carpeted front/rear floor mats
• Driver & front passenger door scuff plates

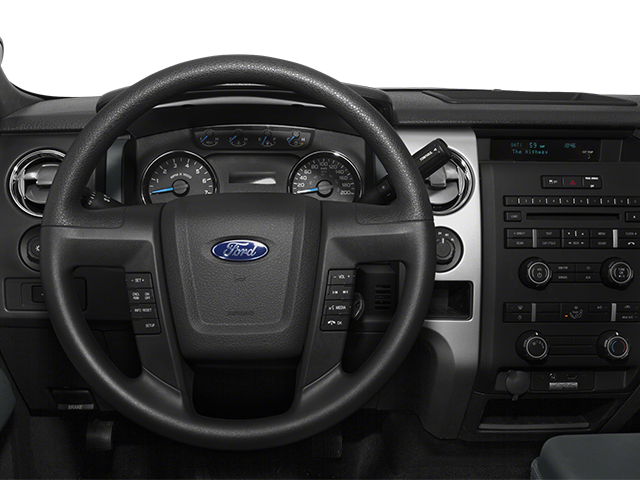

• Black urethane steering wheel
• Tilt steering column
• Display center -inc: warning messages & text functions
• Customer info display
• Outside temp gauge

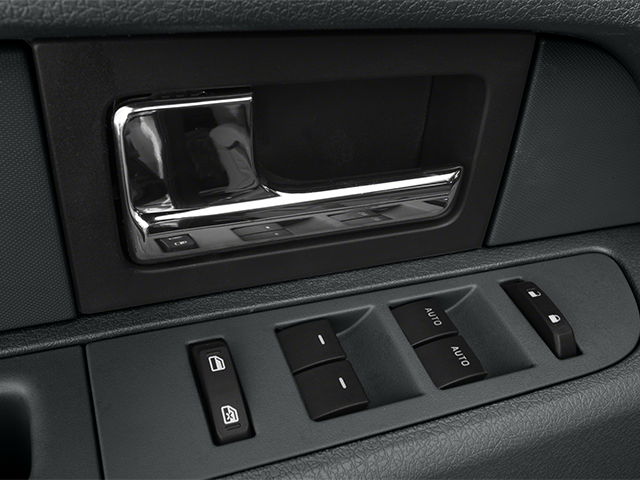

• Pwr 1st & 2nd row windows
• Delayed accessory pwr
• Pwr door locks w/autolock feature
• Perimeter alarm
• Remote keyless entry key
• Driver side SecuriCode keyless entry keypad
• Cruise control
• SecuriLock passive anti-theft system (PATS)
• Manual air conditioning
• Chrome ring w/obsidian vanes air conditioning registers
• Deployable cupholder under center portion of seat
• Front pwr point
• Rear pwr point
• Compass
• Overhead console
• Driver & passenger covered visor vanity mirrors
• Front passenger side A-pillar grab handle
• 2nd row B-pillar grab handles
• Dome light
• Illuminated entry
• Fade-to-off interior lighting

• Anti-lock braking system (ABS)
• AdvanceTrac w/Roll Stability Control (RSC)
• Hill start assist
• Dual stage driver & passenger front airbags
• Dual stage driver & front passenger seat-mounted side airbags
• Safety Canopy front/rear outboard side curtain airbags
• MyKey owner controls feature -inc: top speed limiter, audio volume limiter, early low fuel warning, programmable sound chimes, Beltminder w/audio mute
• SOS post crash alert system
• Outboard front lap & shoulder safety belts -inc: height adjusters, pretensioners, energy management retractors
• Auto lock safety belt feature for child seats
• Tire pressure monitoring system
• Dual note horn

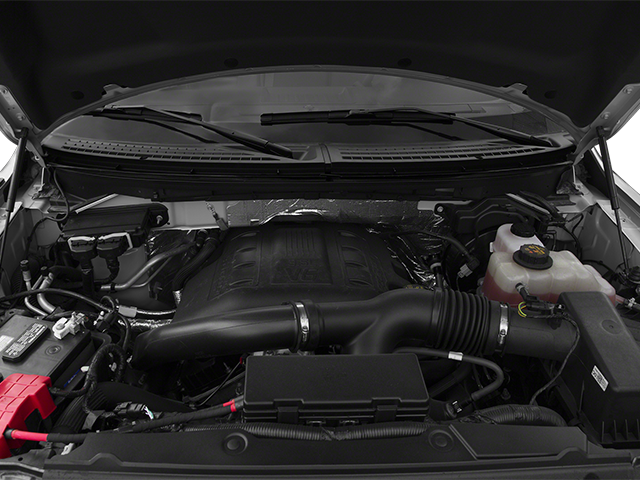

5.0L V8 FFV ENGINE

• (STD)

• LUXURY EQUIPMENT GROUP -inc: pwr heated exterior mirrors w/integrated turn signals & driver side auto-dimming function
• auto-dimming rearview mirror
• 6-way pwr driver seat
• pwr adjustable pedals
• SiriusXM satellite radio
• MyFord w/5-way steering wheel control switch
• 4.2 LCD audio/climate control screen in center stack
• 4.2 LCD productivity screen message center w/trip computer
• leather-wrapped steering wheel
• trailer tow pkg w/class IV trailer hitch receiver
• 7-pin wiring harness
• upgraded radiator
• aux trans oil cooler

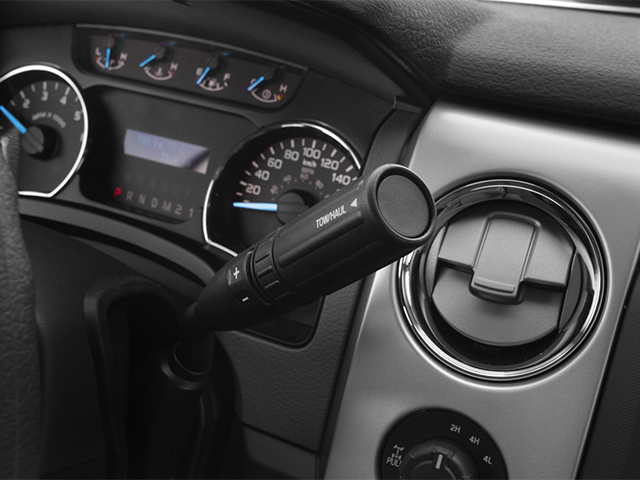

• SelectShift auto trans
• trailer brake controller
• reverse sensing system
• rearview camera
• pwr sliding rear window w/defroster
• chrome bar-style grille insert w/silver mesh
• 5 chrome running boards
• chrome door handles w/black bezels
• chrome exhaust tip
• chrome front tow hooks
• 18 chrome-clad aluminum wheels
• P275/65R18 OWL all-terrain tires *Additional SYNC services available w/annual subscription fee* *SiriusXM N/A in AK or HI* *GROSS* 63T-R
• 99F
• XL9

• Mileage
• Fuel Economy Est-Combined (MPG): 16
• EPA Fuel Economy Est - City (MPG): 14
• EPA Fuel Economy Est - Hwy (MPG): 19
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Maximum Alternator Capacity (amps): 155
• Maximum Alternator Watts: 2100
• Cooling System
• Total Cooling System Capacity (qts): 15.0
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3900
• Gross Axle Wt Rating - Rear (lbs): 3850
• Curb Weight - Front (lbs): 3214
• Curb Weight - Rear (lbs): 2372
• Gross Vehicle Weight Rating Cap (lbs): 7350
• Gross Combined Wt Rating (lbs): - TBD -
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7700
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1155
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 7700
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 1925
• Suspension
• Suspension Type - Front: Double-Wishbone
• Suspension Type - Rear: Live Axle
• Spring Capacity - Front (lbs): 3900
• Spring Capacity - Rear (lbs): 3850
• Axle Type - Front: Long-Spindle
• Axle Type - Rear: Semi-Float Beam
• Axle Capacity - Front (lbs): 4050
• Axle Capacity - Rear (lbs): 3800
• Axle Ratio (:1) - Front: 3.55
• Axle Ratio (:1) - Rear: 3.55
• Shock Absorber Diameter - Front (mm): 36.068
• Shock Absorber Diameter - Rear (mm): 32.004
• Stabilizer Bar Diameter - Front (in): 1.34
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.78 x 0.55
• Rear Brake Rotor Diam x Thickness (in): 13.7 x 0.413
• Tires
• Front Tire Order Code: T7H
• Rear Tire Order Code: T7H
• Front Tire Size: P265/70R17
• Rear Tire Size: P265/70R17
• Spare Tire Size: P265/70R17
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Revolutions/Mile @ 45 mph - Spare: N/A
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: 17.0
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 47.0
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Fully Boxed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 144.5
• Length, Overall w/o rear bumper (in): 231.9
• Width, Max w/o mirrors (in): 79.2
• Height, Overall (in): 76.7
• Overhang, Front (in): 38.3
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 166.1
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 33.8
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 67.0
• Cargo Box Width @ Top, Rear (in): 60.3
• Cargo Box Width @ Floor (in): 60.3
• Cargo Box Width @ Wheelhousings (in): 50.0
• Cargo Box (Area) Height (in): 22.4
• Tailgate Width (in): 60.3
• Cargo Volume (ft³): 55.4
• Ext'd Cab Cargo Volume (ft³): 59.9
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.0
• Front Leg Room (in): 41.4
• Front Shoulder Room (in): 65.9
• Front Hip Room (in): 60.5
• Second Head Room (in): 40.3
• Second Leg Room (in): 43.5
• Second Shoulder Room (in): 65.5
• Second Hip Room (in): 64.6
• Summary

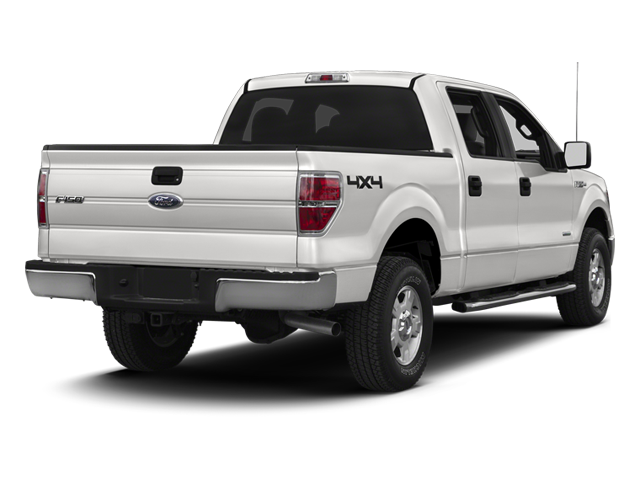

• Vehicle Name: Ford F-150
• Body Style: Crew Cab Pickup
• Emissions
• EPA Greenhouse Gas Score: 1 (2012)
• Tons/yr of CO2 Emissions @ 15K mi/year: 11.5
