• Wheels: 19.5" x 6.0" Steel
• Tires: 225/70R19.5G FT All Position, RR Traction
• Black Front Bumper w/2 Tow Hooks
• Black Side Windows Trim and Black Front Windshield Trim
• Black Door Handles
• Exterior Mirrors w/Clearance Lights
• Fixed Rear Window
• Light Tinted Glass
• Variable Intermittent Wipers
• Galvanized Steel/Aluminum Panels
• Front License Plate Bracket
• Auto On/Off Reflector Daytime Running Headlamps w/Delay-Off
• Cab Clearance Lights

• Radio: Uconnect 3.0
• Radio w/Seek-Scan, Clock, Aux Audio Input Jack, Radio Data System and External Memory Control
• 6 Speakers
• Integrated Roof Antenna
• Streaming Audio

• 40-20-40 Bench Folding Driver Seat w/4 Way Direction Control -inc: Manual Fore/Aft and Adjustable Headrest
• Driver Seat
• Manual Adjust 4-Way Driver Seat
• 40-20-40 Bench Folding Passenger Seat w/4 Way Direction Control -inc: Manual Fore/Aft and Adjustable Headrest
• Passenger Seat
• Manual Adjust 4-Way Front Passenger Seat
• Full Folding Bench Front Facing Fold-Up Cushion Vinyl Rear Seat
• Manual Tilt Steering Column
• Power Rear Windows
• Rear Cupholder
• Proximity Key For Push Button Start Only
• Cruise Control w/Steering Wheel Controls
• Manual Air Conditioning
• HVAC -inc: Underseat Ducts
• Interior Trim -inc: Deluxe Sound Insulation, Metal-Look Instrument Panel Insert and Chrome/Metal-Look Interior Accents
• Full Cloth Headliner
• HD Vinyl 40/20/40 Split Bench Seat
• Day-Night Rearview Mirror
• Passenger Visor Vanity Mirror
• 2 12V DC Power Outlets
• Full Vinyl/Rubber Floor Covering
• USB Host Flip
• Integrated Voice Command w/Bluetooth
• Electronically Controlled Throttle
• Instrument Panel Bin, Dashboard Storage, Driver / Passenger And Rear Door Bins and 2nd Row Underseat Storage
• Delayed Accessory Power
• Power 1st Row Windows w/Driver And Passenger 1-Touch Up/Down
• Power Door Locks w/Autolock Feature
• Driver Information Center
• Redundant Digital Speedometer
• Analog Appearance
• Seats w/Vinyl Back Material
• Manual Adjustable Front Head Restraints
• 40/20/40 Split Bench Seat
• Front Armrest w/Cupholders
• 2 Way Rear Headrest Seat
• Sentry Key Immobilizer

• Electronic Stability Control (ESC)
• ABS And Driveline Traction Control
• Side Impact Beams
• Dual Stage Driver And Passenger Front Airbags
• Airbag Occupancy Sensor
• Rear Child Safety Locks
• Outboard Front Lap And Shoulder Safety Belts -inc: Rear Center 3 Point, Height Adjusters and Pretensioners

ENGINE: 6.7L I6 CUMMINS TURBO DIESEL

• Selective Catalytic Reduction (Urea)
• Dual 730 Amp Maintenance Free Batteries
• Clean Idle Emissions Label
• Cummins Turbo Diesel Badge
• Current Generation Engine Controller
• Smart Diesel Exhaust Brake
• Supplemental Heater
• B-20 Bio Diesel Capability
• GVWR: 19
• 500 lbs

• QUICK ORDER PACKAGE 2YA TRADESMAN -inc: Engine: 6.7L I6 Cummins Turbo Diesel
• Transmission: 6-Speed Auto Aisin AS69RC HD
• Urethane Shift Control
• Halogen Quad Headlamps
• Door Sill Scuff Pads
• Glove Box
• Exterior Mirrors w/Supplemental Signals
• Map/Courtesy Lamp
• Exterior Mirrors Courtesy Lamps
• Trailer Tow Mirrors
• Rear Dome Lamp
• Exterior Mirrors w/Heating Element
• Black Key Fob
• Matte Black Grille Surround
• Mirror Running Lights
• Black Exterior Mirrors
• Black Wheel Flares
• Overhead Console
• Overhead Cupholder Lamp
• Power Black Trailer Tow Mirrors *Upon selection of this pkg
• the cost of powertrain components will be added* DF2
• ETN
• GXM
• MRT
• UAA
• XAC

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 1460
• Cold Cranking Amps @ 0° F (Primary): 730
• Cold Cranking Amps @ 0° F (2nd): 1460
• Cold Cranking Amps @ 0° F (2nd): 730
• Maximum Alternator Capacity (amps): 180
• Weight Information
• Base Curb Weight (lbs): 7923
• Gross Axle Wt Rating - Front (lbs): 7000
• Gross Axle Wt Rating - Front (lbs): 6000
• Gross Axle Wt Rating - Rear (lbs): 13500
• Curb Weight - Front (lbs): 4532
• Curb Weight - Rear (lbs): 3391
• Gross Vehicle Weight Rating Cap (lbs): 18000
• Gross Combined Wt Rating (lbs): 26000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 17930
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1793
• Maximum Trailering Capacity (lbs): 17930
• Suspension
• Suspension Type - Front: Leading Link
• Suspension Type - Rear: Leaf
• Spring Capacity - Front (lbs): 7000
• Spring Capacity - Front (lbs): 6000
• Spring Capacity - Rear (lbs): 13500
• Axle Type - Front: Non-Independent
• Axle Type - Rear: Rigid Axle
• Axle Capacity - Front (lbs): 7000
• Axle Capacity - Rear (lbs): 13500
• Axle Ratio (:1) - Front: 4.44
• Axle Ratio (:1) - Rear: 4.44
• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Brake ABS System (Second Line): 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 15.3
• Rear Brake Rotor Diam x Thickness (in): 15.3
• Tires
• Front Tire Order Code: TAJ
• Rear Tire Order Code: TAJ
• Front Tire Size: 225/70R19.5
• Rear Tire Size: 225/70R19.5
• Front Tire Capacity (lbs): 7940
• Rear Tire Capacity (lbs): 15000
• Revolutions/Mile @ 45 mph - Front: 651
• Revolutions/Mile @ 45 mph - Rear: 650
• Wheels
• Front Wheel Size (in): 19.5 X 6
• Rear Wheel Size (in): 19.5 X 6
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Re-Circulating Ball
• Turning Diameter - Curb to Curb (ft): 59.7
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 52
• Exterior Dimensions
• Wheelbase (in): 197.4
• Length, Overall (in): 289.2
• Width, Max w/o mirrors (in): 86.9
• Height, Overall (in): 81.4
• Overhang, Front (in): 40.8
• Overhang, Rear w/o bumper (in): 50.8
• Cab to Axle (in): 83.9
• Cab to End of Frame (in): 135.1
• Ground Clearance, Front (in): 8.1
• Ground Clearance, Rear (in): 8.1
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 40.9
• Front Leg Room (in): 40.9
• Front Shoulder Room (in): 65.9
• Front Hip Room (in): 62.9
• Second Head Room (in): 39.8
• Second Leg Room (in): 40.2
• Second Shoulder Room (in): 65.6
• Second Hip Room (in): 62.7
• Summary

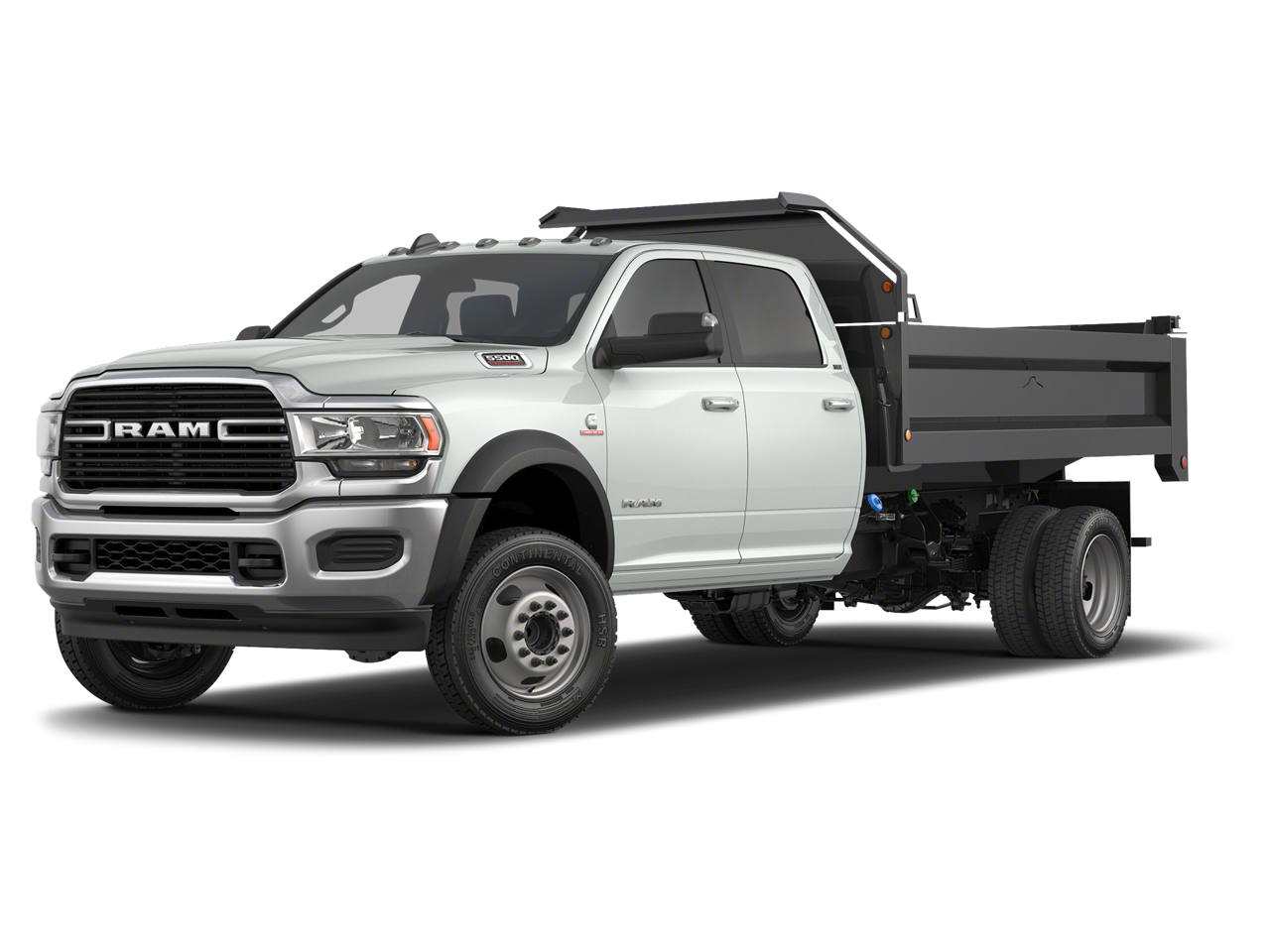

• Vehicle Name: Ram 5500 Chassis Cab
• Body Style: Crew Cab
• Body Code: H
